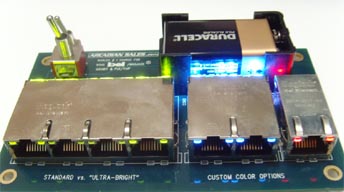

The all-new Ultra-Bright MagJack® have LED's 5×brighter than standard LED's and are fully RoHS compliant.

The power and flexibility of Stretch software configurable processors make them ideally suited for video processing and Stretch processors have been widely embraced by the surveillance industry. As the industry transitions from standard to high definition video and from analog streams to Internet Protocol transmission, there is tremendous demand for high performance, low cost video processors. Stretch S6000 and S7000 software configurable processors deliver the industry's highest video quality at the lowest cost per channel available and leading edge CODECs such as the H.264 Scalable Video CODEC (SVC) are opening up new use models, making content more available and more manageable than ever.

Function Description

POE (Power Over Ethernet) refers to a technology which transmit the data signal for some terminal equipment based on IP(such as IP phones, wireless local area network access point AP , Network cameras, etc.) at the same time can supply DC power to these equipment directly with the condition that the existing Ethernet Cat.5 Cabling infrastructure doesn’t make any change. POE technology can ensure the normal operation of existing network at the precondition of security for existing Structured cabling, and reduce cost to the utmost extent.
POE, also known as the power supply system based on LAN (POL, Power over LAN) or Active Ethernet, sometime it was called power over Ethernet.，which is the latest standard utilized existing standard Ethernet cable to transmit date and power at the same time. While it maintains the compatibility between existing Ethernet system and users.  IEEE 802.3af as a extension of existing Ethernet standard , is a new standard based on POE system  which increase some related standard about power supply through network cable on the base of IEEE 802.3. It’s the first international standard about electric power allocation.

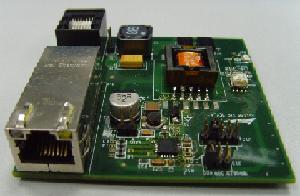

Component Description

Brand：BELFUSE，PN：0838-1X1T-W7，Function description：RJ45 1000M, 1port, POE , Y/GO LED light, within isolation transformer
2.Brand：Akros，PN：AS1113，Function description：13W PD voltage
converting chip ，convert to two different projects with 12V and 5V from
48V.

Major Parameter

Input Voltage：Between 44～57V ,Typical value: 48V.
Input Current：Allowable Current Max:550mA, Starting current Max:500mA, Typical working current:10～350mA, Over-load detection current: 350～500mA, No-load current Max: 5mA.
Output Voltage：12V or 5V，Choose by customer’s request.
Output Power： Provide five different grade electric power from 3.84W to 12.95W for equipment . Max is not more than 13W.
Meas：L70mm*W70mm*H18mm
